We set you the following five geometrical puzzles by Catriona Shearer. We hope you discovered the clever way of solving them, without recourse to pages of algebra.

1. Orange segments

If the radius of each semicircle is 5, what’s the total shaded area?

all illustrations © Catriona Shearer
 all illustrations © Catriona Shearer

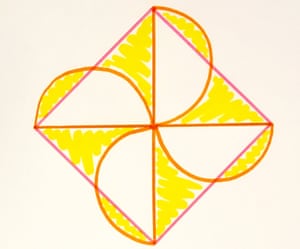

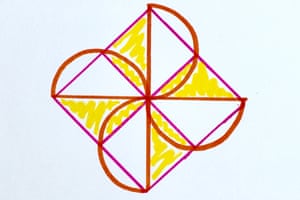

Solution: 100. If you rearrange the shading as below:

undefined

2. Double spiral

Ten equally spaced dots are joined by semicircles to make this spiral. Is more of it shaded red or orange? By how much?

undefined

Solution: 4π

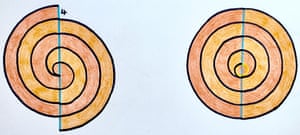

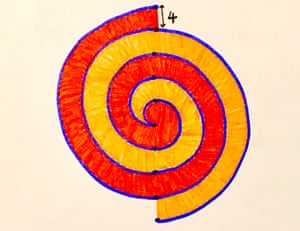

The insight here to imagine chopping the spiral along the blue line and shifting the right side up by 4.

undefined

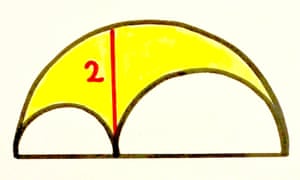

3. Yellow arbelos

The red line, of length 2, is perpendicular to the bases of the three semicircles. What’s the total shaded area?

undefined

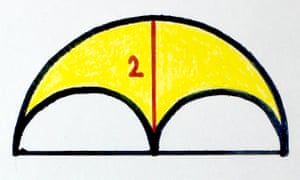

Solution: π. The first thing to notice is that puzzle doesn’t tell us anything about the location of the red line within the rectangle. Let’s assume that this means it doesn’t matter where we place it, so let’s move it to somewhere convenient, such as the centre of the figure:

undefined

If you are not convinced that we can move the red line to the middle, then let’s solve the problem another (less elegant) way. Label the diameters of the two semicircles a and b, and add in lines x and y:

undefined

We have three right-angled triangles here, which means we can use Pythagoras’ theorem on each one. One has hypotenuse x, one has hypotenuse y and one has hypotenuse (a + b), since the angle on a circle subtended by a diameter is right angle.

  • x2 = a2 + 22
  • y2 = b2 + 22
  • (a + b)2 = x2 + y2

If we combine these three equations to get rid of and we get.

(a + b)2 – a2 – b2 = 8

The shaded area is the area of the large semicircle, which has radius (b)/2, minus a semicircle with radius a/2 minus a semicircle with radius b/2. This works out as

π/8 times [(a + b)2 – a2 – b2]

which is equal to π, regardless of the values of and b.

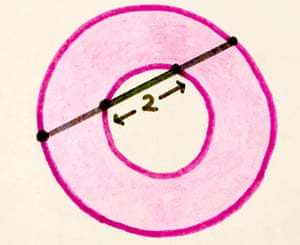

4. The pink donut

The four dots are equally spaced. What’s the shaded area?

undefined

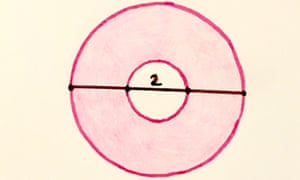

We can try the same trick as last time here. If we assume that the position of the line is irrelevant (which it is), a convenient placement would be across the diameter.

undefined

The shaded area is now just the difference between a circle of radius 3 and a circle of radius 1, which is π33 – π12 = 8π

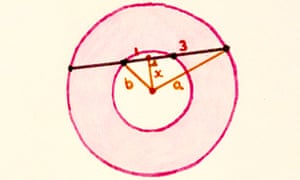

However, we can also use Pythagoras again to show that it doesn’t matter where the line is. If the line does not go through the centre, it creates two right-angled triangles as below.

undefined
  • a2 = x2 + 32
  • b2 = x2 + 12

Since is also the radius of the big circle, and b the radius of the small one, the shaded area is πa2 – πb2 = π(a2 – b2) = 8π.

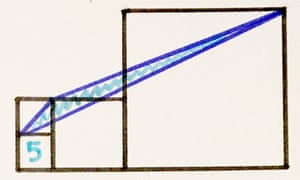

5. Blue triangle

The area of the bottom left square is 5. What’s the area of the blue triangle?

undefined
Solution: 10

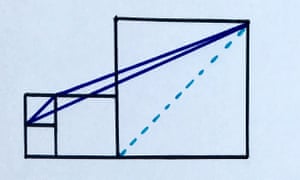

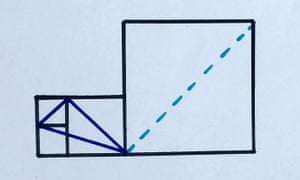

We’re going to need some extra lines as help. First, add the following diagonal to the big square. It is parallel to one of the sides of the triangle. If we call that side of the triangle its base, the triangle’s height is the perpendicular distance between the base and the dotted line.

undefined
undefined

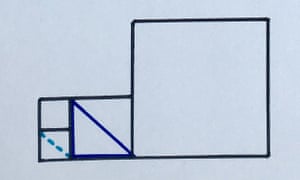

We can do the same again, this time considering the base of the blue triangle the line with the \ slope through the middle square. If the apex moves along the dotted line below (parallel to the base), the area of the blue triangle stays the same.
undefined
The blue triangle thus has an area that is half the middle square. Since we know the small square has area 5, the middle square must have area 20. Thus the blue triangle has area 10.

Thanks again to Catriona Shearer for today’s puzzles. Follow her on twitter at @cshearer41 for many more problems like these ones.
